Palm Recognition and Fingeprint Time Attendance & Access Control System With Battery

รหัส : BIOSH-GT810
เครื่องบันทึกเวลาและคอนโทรลประตูด้วยลายนิ้วมือ ฝ่ามือ และสามารถเพิ่มฟังก์ชั่นการใช้งานบัตร RFID
ราคา 12,000บาท

24 พฤษภาคม 2567

ผู้ชม 239 ผู้ชม

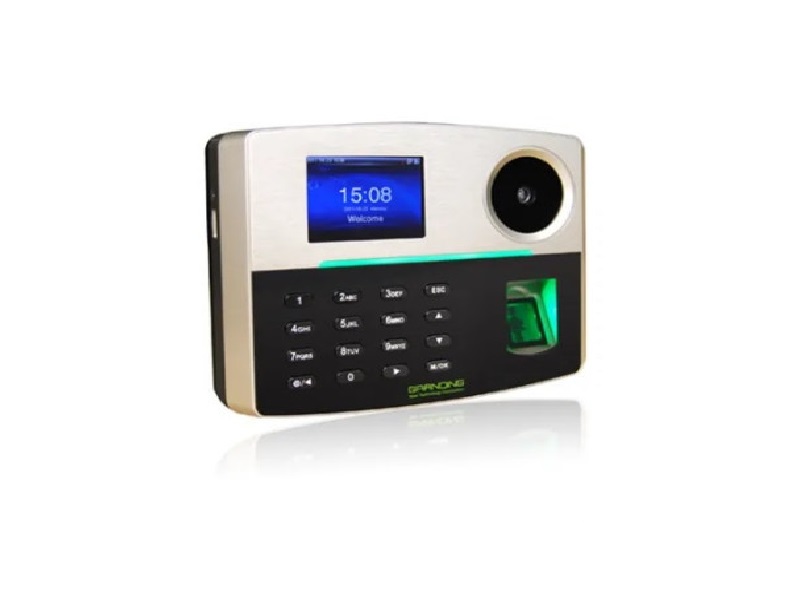

The GT810 is the latest multi-verify biometric access control, combination with Palm and fingerprint, also can customize RFID card function. Support both network and standalone, wireless 3G/ WIFI, makes communication with PC easier. USB flash driver for offline data management. Higher-speed CPU, newest fingerprint and Palm Algorithm, friendly user-interface make operation much comfortable. Built-in battery provides approx 3-4 hours operation for power failure
Feature
  • Muliti-verity mode: Palm, fingerprint, PIN, Card(option)
  • Define the shortcut keys easily
  • Data encrypted in the device
  • Rs232/485, TCP/IP, USB client/ host
  • User role management
  • User information expired date setting
  • Change main screen picture easily
  • Internal POE function for option

Specifications

Display/Speaker

  • LCD display: 3" TFT screen
  • Speaker: Voice prompt (language can be selected)

Capacity

  • Fingerprint capacity: 3,000 Palm capacity: 600
  • Log capacity: 100,000


Verification/Identification

  • Verification speed (1:1): ≤0.5s
  • Identification speed (1:N): ≤1s

Power Supply

  • Power: 110/220V AC-5V/1A Built in Li-battery 3.7V 4000mAh

Communication

  • TCP/IP, USB host/client, RS232/485

Standard Function

  • User role management, fingerprint expired date setting, shortcut key setting, fingerprint image display, main screen picture alternation, work code, T9 input, scheduled bell, web server, auto status, DST, log query


Language

  • Multi Languages, such as English, French, Spanish, Arabic, etc.

Environment

  • Operation temperature: 0°C-45°C
  • Operation humidity: 20%-80%


Verification/Identification

  • FRR: ≤0.01%
  • FAR: ≤0.0001%


Package

  • machine size: 205*105*45MM

Access control

  • Built-in relay, 99time zone, 5 group, 10 door open combination


Customized Function

  • Print function, 9-PIN user ID, ID card/ HID card/ MIFARE card reader, WIFI, ADMS (Automatic data master server), 3G, external siren, POE
