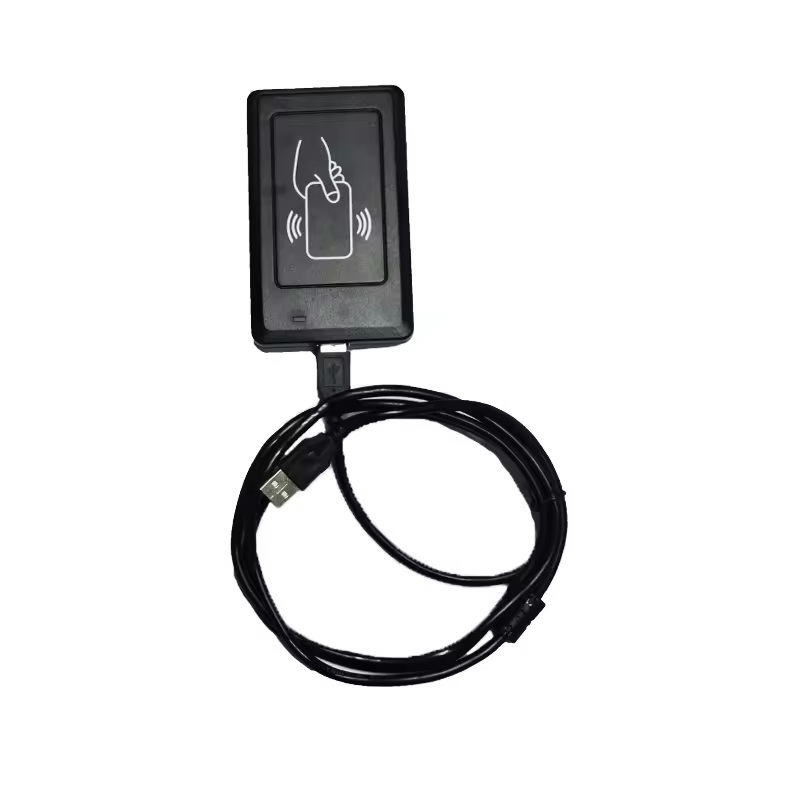

USB HID & keyboard output Desktop high-performance UHF RFID Reader & Writer

หมวดหมู่สินค้า: RFID Reader and Writer
รหัส : SW1902
SW1902 is a high-performance UHF RFID Reader & Writer. It is designed upon fully self-intellectual property. Based on a proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with a high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance systems, anti-counterfeit and industrial production process control systems.
ราคา 4,000บาท
- +

14 มิถุนายน 2567

ผู้ชม 153 ผู้ชม

Features:

  1. Self-intellectual property.
  2. Support ISO18000-6C (EPC C1G2) protocol tag.
  3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
  4. FHSS or Fix Frequency transmission.
  5. RF output power up to 17dBm (adjustable).
  6. 2dBi Ceramic Antenna with effect distance up to 0cm~50cm*.
  7. Support active mode, answer mode, trigger mode.
  8. Support USB 2.0 interface with HID mode & USB Keyboard or VSP (Virtual Serial Port).

* Effective distance depends on antenna, tag, and environment.

Product Technical Parameters

Model Number

SW1902

Type

UHF Desktop USB Reader & Writer

Physical parameters

Dimensions

115 x 70 x 20mm

Net Weight

60g

Gross Weight

0.3Kg

Package size

15*10*4cm

Shell material

ABS

Color

Black

Environmental Parameters

Operation Temperature

-20~+60℃

Storage Temperature

-40~+85%

Humidity

5%～95% RH, Non-condensing

Performance

Frequency

902~928MHz,860~868MHz (frequency customization optional)

Ant.

2dBi Ceramic Antenna

RF Power

0 - 17dBm

Read Distance *

0-50cm * Effective distance depends on antenna, tag, and environment.

Write Distance *

0-25cm * Effective distance depends on antenna, tag, and environment.

Read Rate

200cnt / second

Read Type

ISO18000-6C（EPC Gen2）

Reading Prompt

Buzzer, LED

Working Voltage

USB, 200mA

Work Mode

Active mode, Answer mode, trigger mode

Communication

SW1902: USB (USB HID & Keyboard)
SW1902S: USB VSP (Virtual Serial Port)

SDK

Support X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, and Android.
