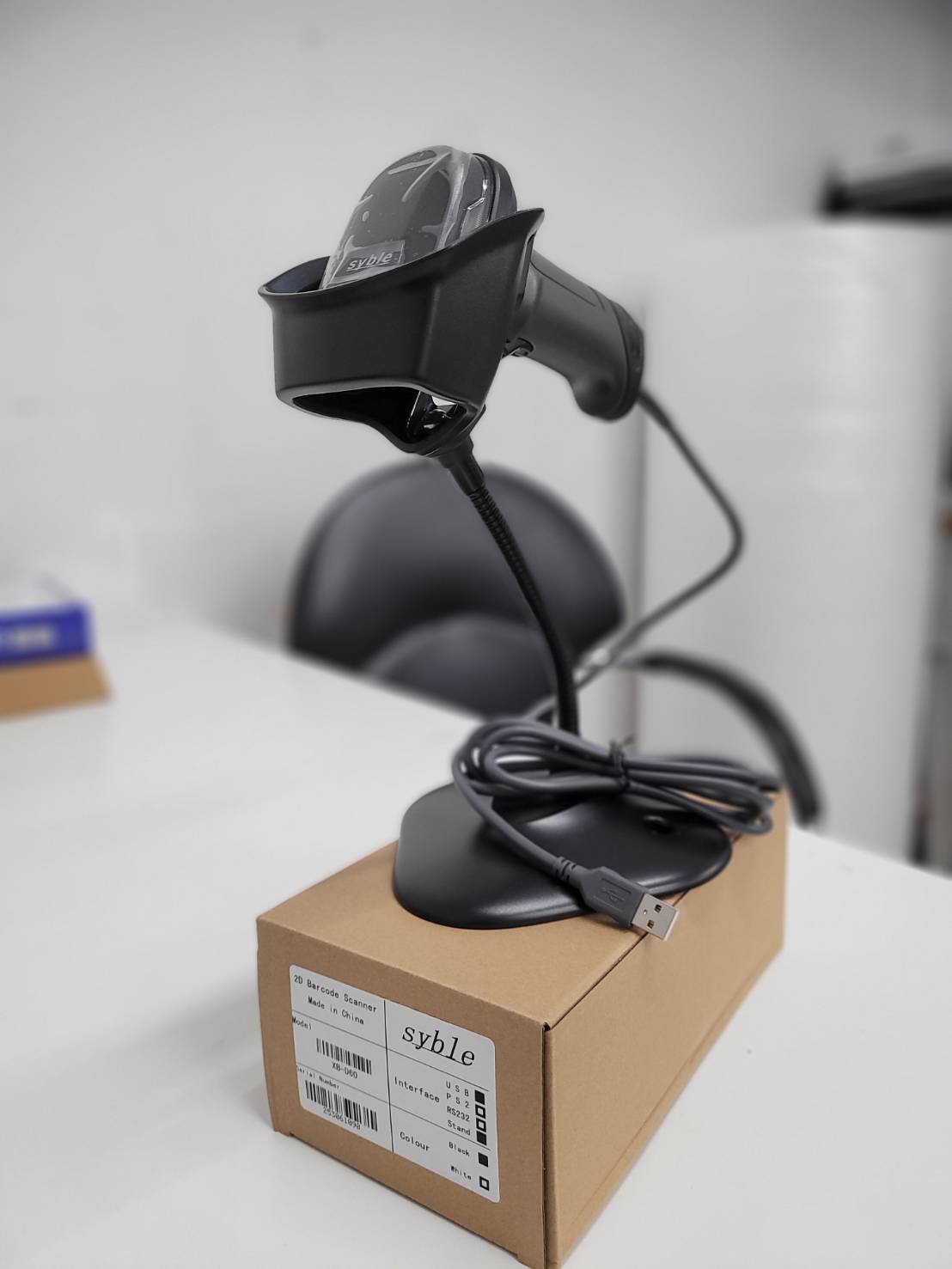

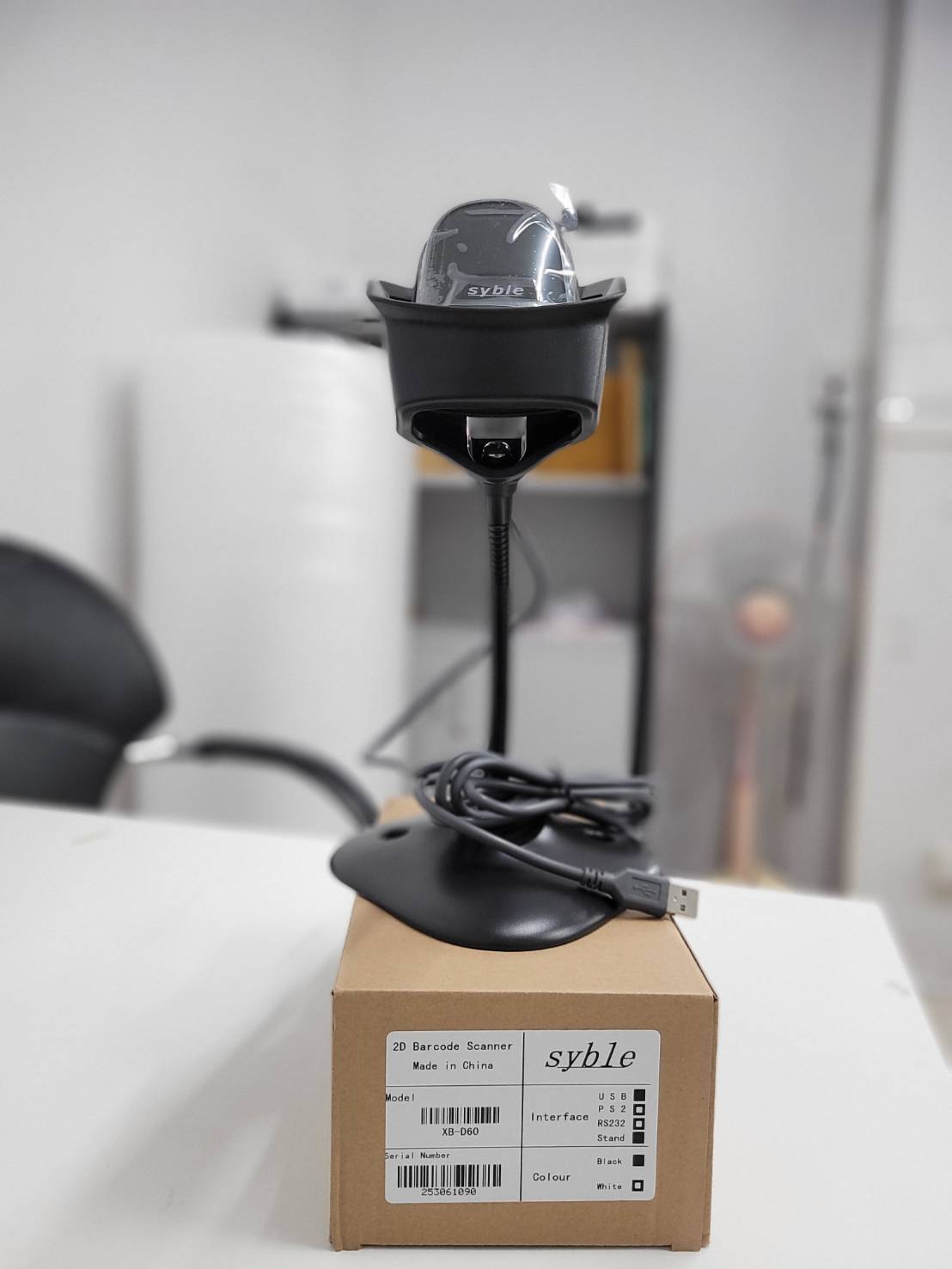

1D&2D handheld barcode scanner usb cable with stand
09 ตุลาคม 2567
ผู้ชม 120 ผู้ชม
New design 2D Industrial handheld barcode scanner with Green LED Light
XB-D60 is Syble new design 2D Industrial handheld wired barcode scanner with Green LED Light,has innovative design and competitive factory price. Strong recognition of folding code, stain code, vacuum packaging bar code etc. Placing the scanner on the stand then switch to the auto-sensing mode automatically,no need to rely on setting codes.
Product Feature
- Support various barcodes such as WeChat and Alipay
- New decoding chip for interpreting various 1D and2D barcodes
- Support Chinese direct transmission ofQR code
- Plug and play, easy to set up and quickly match
- The loud beep for easily operate in the noisy circumstances
- Wire life more durable
|
Specification |
|
|
Performance Parameters |
|
|
Light Sources |
(Aimer)RED color LED, (lllumination)White color LED |
|
Supported Symbologies |
ID: Codabar, Code 39, Code 32 Pharmaceutical(PARAF), Interleaved 2 of 5,NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8,EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited,GS1 DataBar Expanded, China Post(Hong Kong 2 of 5), Korea Pos. |
|
Image (Pixels) |
640pixels (H) x 480 pixels (V) |
|
Field of View: |
39°(Horizontal), 29°(Vertical) |
|
Print Contrast: |
20% minimum reflective difference |
|
Motion Tolerances: |
> 1m/s |
|
Scan Angle |
Yaw±65°, Rotation 360°, Pitch±65° |
|
Depth of scan field |
Code39(5mil): 7-16cm, Code39(13mil): 7-32cm QR code (15mil): 3-18cm, Codel28(20mil): 6-35cm |
|
Error Rate |
1/5million |
|
Interface |
USB,USB-COM,RS232 |
|
Physical Parameters |
|
|
Dimensions |
83.5mm*65.7mm*174.8mm |
|
Material |
ABS+PC |
|
Cable Length |
1.8M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃ ~60℃ |
|
Storage Temperature |
-30℃~70℃ |
|
Relative Humidity |
5%~95% RH（Non-condensing） |
|
Ambient lighting |
0~100000LUX |
|
Electronic Parameters |
|
|
Working Voltage |
DC5V±5% |
|
Operating Current |
300mA |
|
Standby Current |
35mA |
